Anaerobic retaining compound is used for filling cylindrical gap between metal parts to make a high strength bonding and holding.
| Brand Name | Luoke |
|---|---|
| Model Number | LK603, LK609, LK620, LK638, LK641, LK660, LK680 |
| Components | Single Component |
| Color | Green, Yellow |
| Product status | Viscous Liquid |
| Cure System | |
| Handling cure time | 10min~30min |
| Full cure time | 24hrs |
| Package Type | LDPE bottle |
| Package Size | 250ml, 50ml |
| Storage conditions | Cool, dark and dry location |
| Temperature range | -50°C~+150°C; -50°C~+204°C |
LK601(loctite 601 equivalent):
low viscosity, medium cure speed, suitable for a maximum diametrical clearance of 0.1 mm. It is a high strength product for applications that require a permanent bond

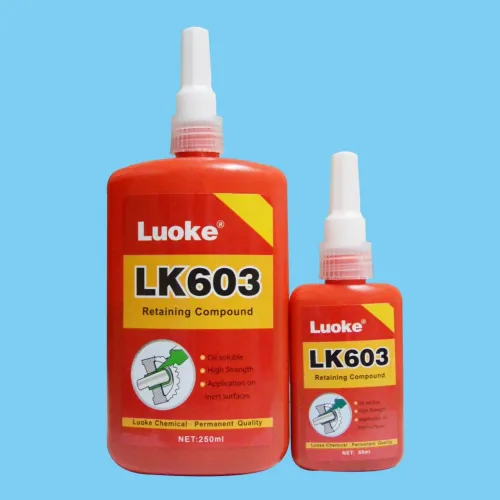

LK603(loctite 603 equivalent):
This adhesive has oil-dissolved specialty, high strength. It is suitable for sealing and locking cylindrical parts, gap diameter of which is around 0.13mm. It can be cured within ten minutes, to avoid wear from slight shock and corrosion of metal parts.

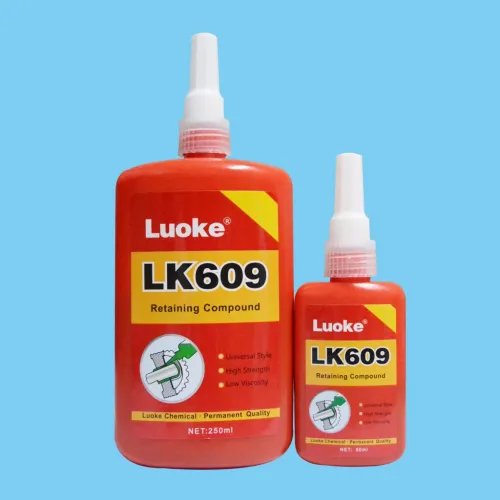

LK609(loctite 609 equivalent):
With low viscosity and high strength, this adhesive is suitable for match of transition, over-rigidity or gap filling. It is suitable for sealing and locking cylindrical parts, gap diameter of which is around 0.1mm. It can improve the strength of press fit and restore of wear holes – axis fitting parts or parts with error.

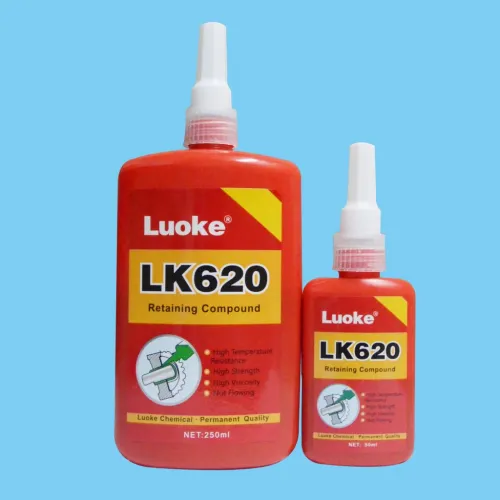

LK620(loctite 620 equivalent):
With high temperature resistance, high viscosity and high strength, this adhesive can be used in injection movement sets, valve covers, cylinder liner, keyway and so on. It is suitable for locking and holding gap diameter around 0.12mm.

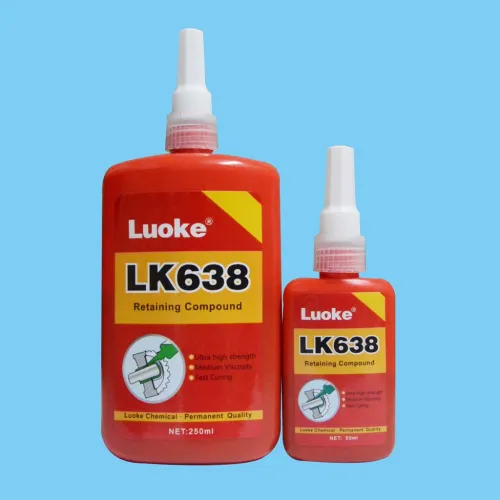

LK638(loctite 638 equivalent):
With high strength, this holding adhesive is used to match and hold gap around 0.25mm. It is suitable for status of kinetic energy loading or cyclic loading

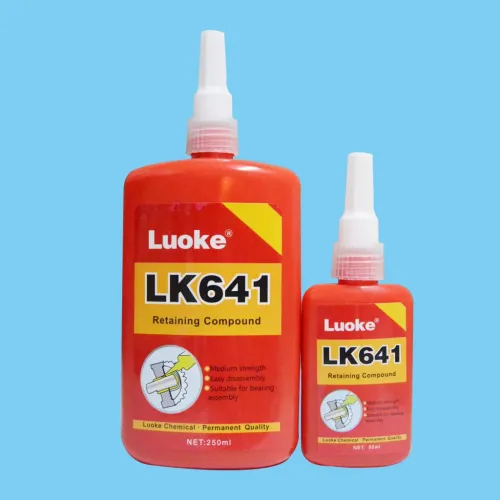

LK641(loctite 641 equivalent)：
With medium strength, easy for disassemble, this adhesive is suitable for assemble of bearings. Recommended gap diameter is below 0.10mm. It can cure in 50 minutes.

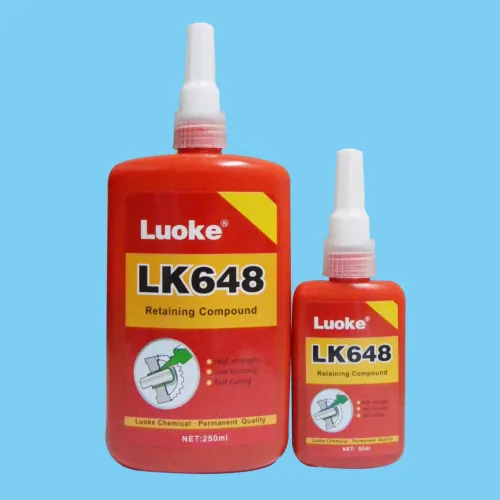

LK648(loctite 648 equivalent):
High strength, it is suitable for status of continuous operating temperature up to 150℃ and gap diameter below 0.10mm.

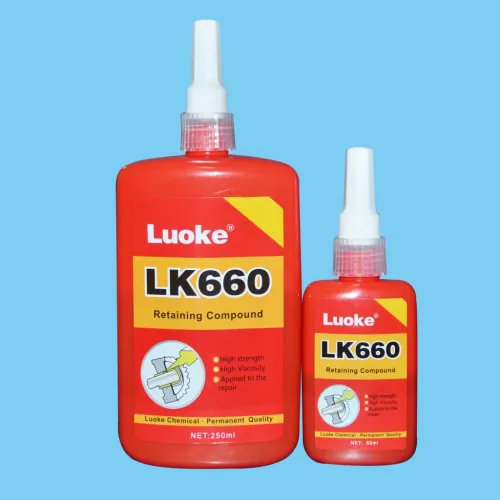

LK660(loctite 660 equivalent):
With high strength and high viscosity(like paste), this adhesive is mainly used for repairing, especially for press-fit parts such as bearings, keyway and end cover. It can fill gap diameter up to 0.50mm.

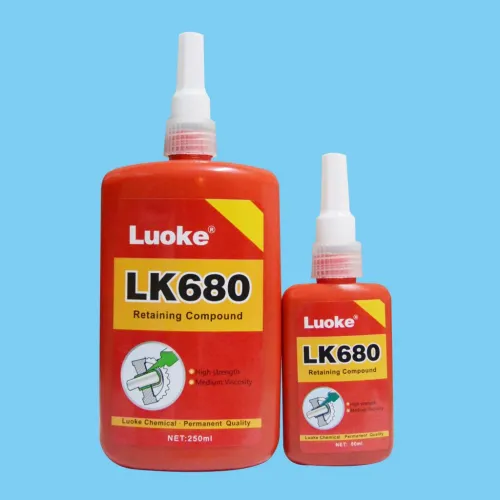

LK680(loctite 680 equivalent):
With high strength and medium viscosity, this adhesive is used for gap match or excessiveness. It is suitable for pulleys, bushings, gears, rotor and so on. It can repair the hole, shaft fitting parts and parts with error. Initial strength forms within 30 minutes, full strength in 24 hours. For steel it can bear 23N/Mpa of shear strength after full strength. It applies to gap around 0.25mm.
Parameters Sheet
| Item No. | Max. Bonding Gap (mm) |
Before curing | After curing | Curing Speed | |||||
| Color | Viscosity (Mpa.s) |
Density (G/cm3) |
Breakaway Torque (N.m) |
Shear Strength (Mpa) |
Temperature Limitation (°C) |
Initial Strength (Min) |
Full Strength (H) |
||
| LK603 | 0.10 | Green | 100 | 1.05 | 15 | ≧15 | -50~150 | 15 | 24 |
| LK609 | 0.10 | Green | 140 | 1.10 | 16 | ≧15 | -50~150 | 15 | 24 |
| LK620 | 0.12 | Green | 8000 | 1.16 | 27 | ≧19 | -50~230 | 30 | 24 |
| LK638 | 0.25 | Green | 10600 | 1.09 | 25 | ≧25 | -50~150 | 20 | 24 |
| LK641 | 0.10 | Yellow | 2760 | 1.07 | 17 | ≧8 | -50~150 | 50 | 24 |
| LK648 | 0.10 | Green | 3000 | 1.13 | 24 | ≧8 | -50~150 | 50 | 24 |
| LK660 | 0.50 | Yellow | 2180 | 1.13 | 23 | ≧23 | -50~150 | 30 | 24 |
| LK680 | 0.25 | green | 5300 | 1.11 | 24 | ≧23 | -50~150 | 30 | 24 |
